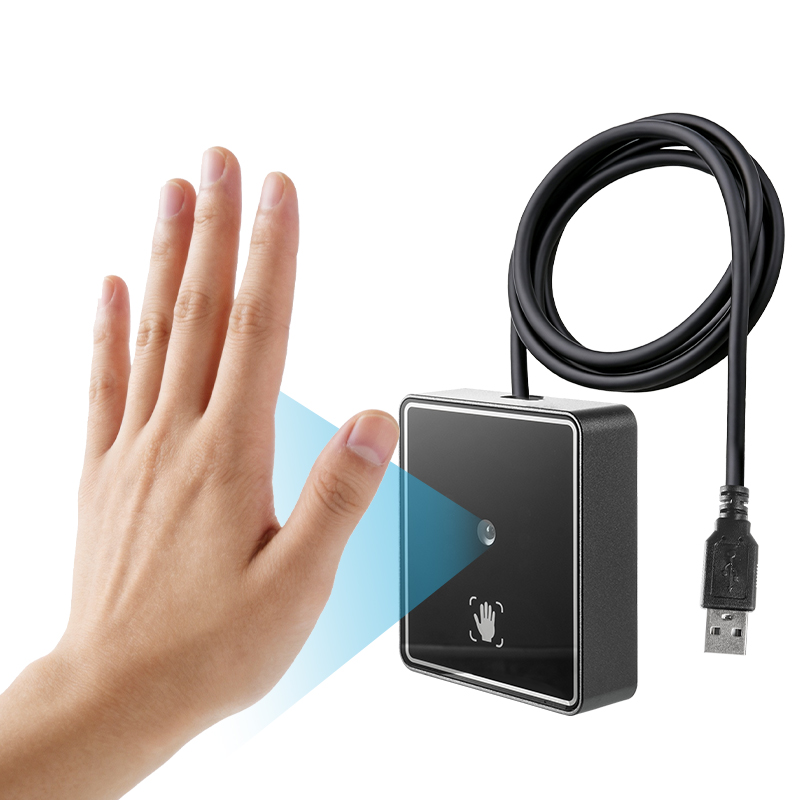

CV-T100 Monocular Palm Vein Capture
CV-T Series

Palm Vein Capture Device

Palm vein capture modules and ready-to-use access control terminals for access control, time attendance, and biometric authentication systems.

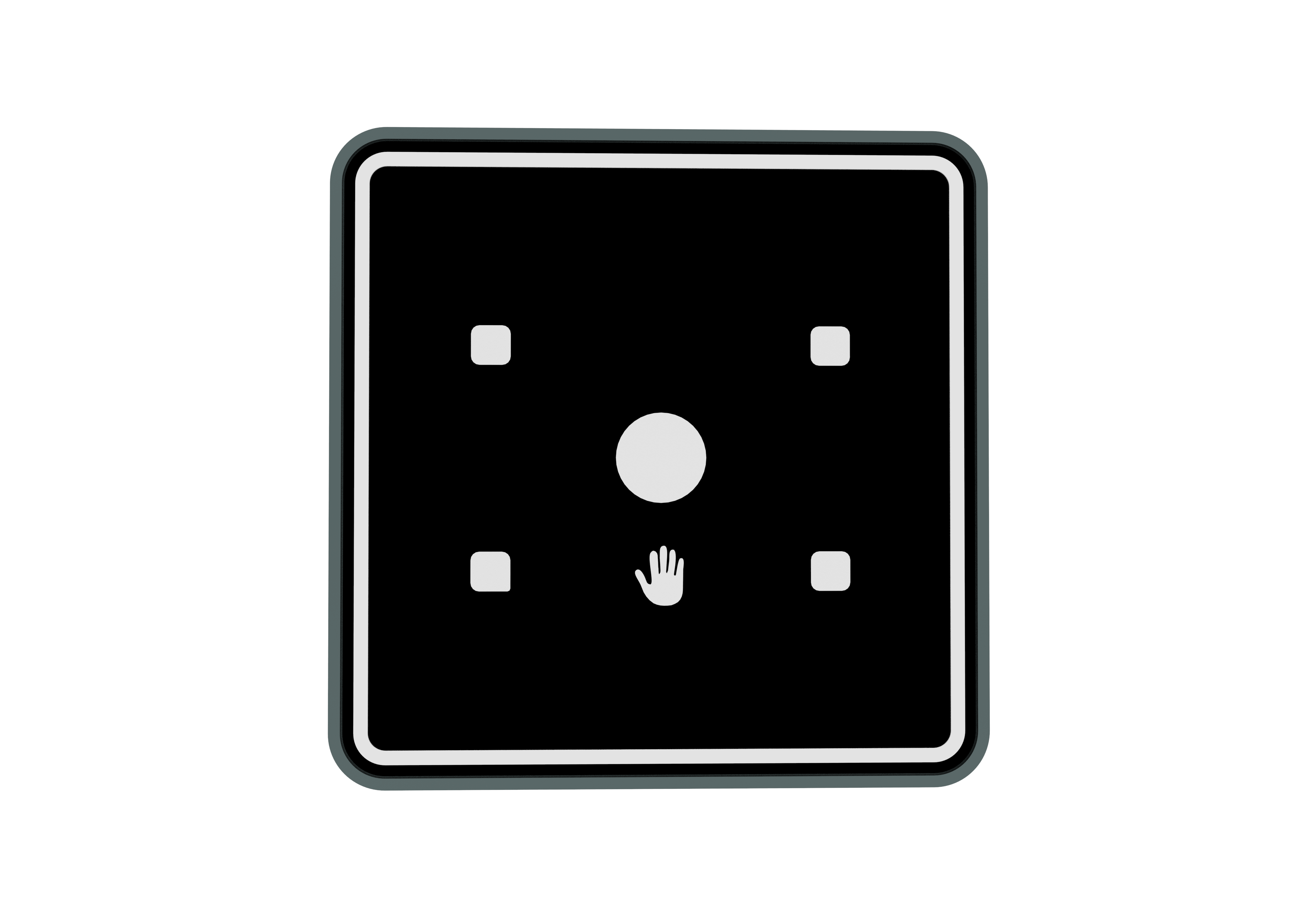

CV-T100 — Camera & Optical

ModelCV-T100 (Monocular)
Sensor Resolution1920 × 1080
Photosensitive Chip1/2.9"
Pixel Size2.8 × 2.8 μm
Lens6P + 1R
ADC Resolution10-bit
Max Frame Rate30 fps
Signal-to-Noise Ratio38 dB
Dynamic Range81 dB
Output FormatYUV / MJPG
FilterNarrowband 850 nm
Field of ViewD 123.6° × H 74.3° × V 102.8°
TV Distortion< 7%
Aperture / Focal LengthF2.4 / 2.69 mm

Physical & Electrical

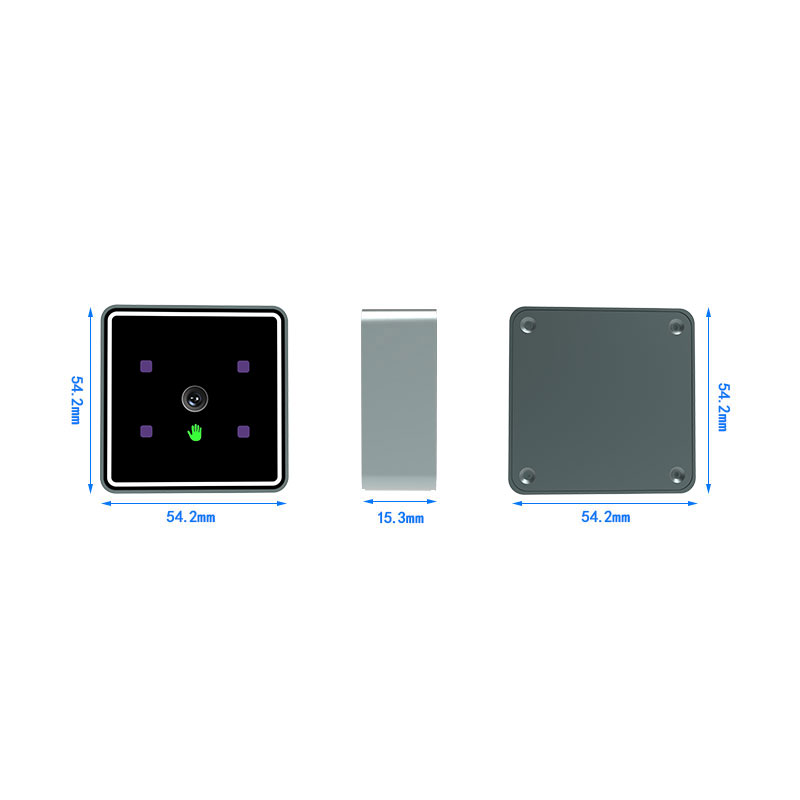

Device Size54.2 × 54.2 × 15.3 mm
Operating Voltage5 V DC
Operating Temperature−20 °C ~ 75 °C
InterfaceUSB 2.0
Network Port FPC ConnectorSupport
WiFi FPC ConnectorSupport
Serial Port ConnectorSupport

Wireless (Optional)

WiFi FunctionWi-Fi 4 — webcam functionality and remote communication
Bluetooth FunctionBT 4.2 — Bluetooth functionality and configuration module

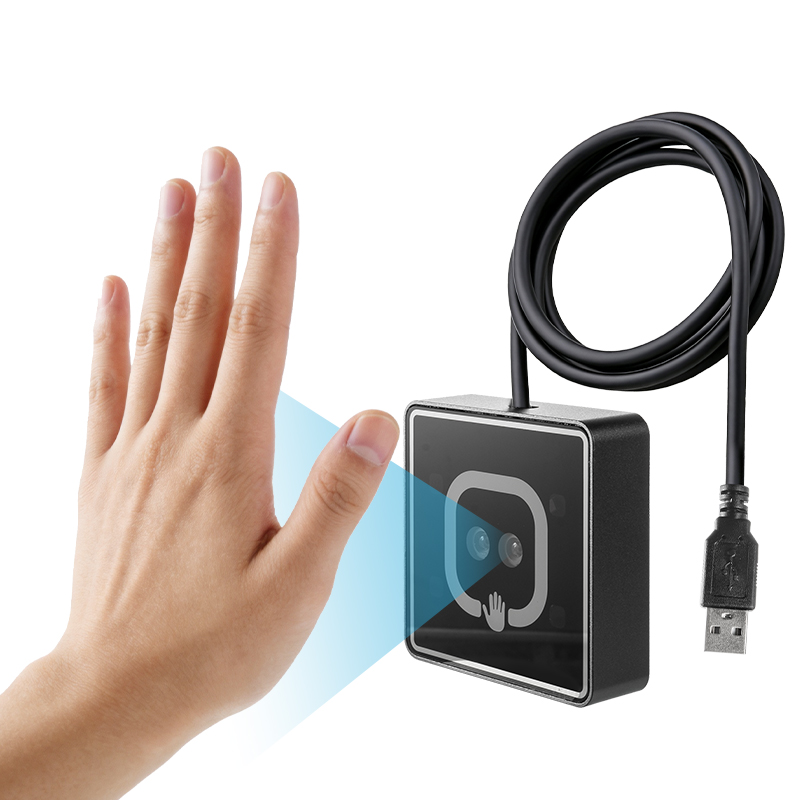

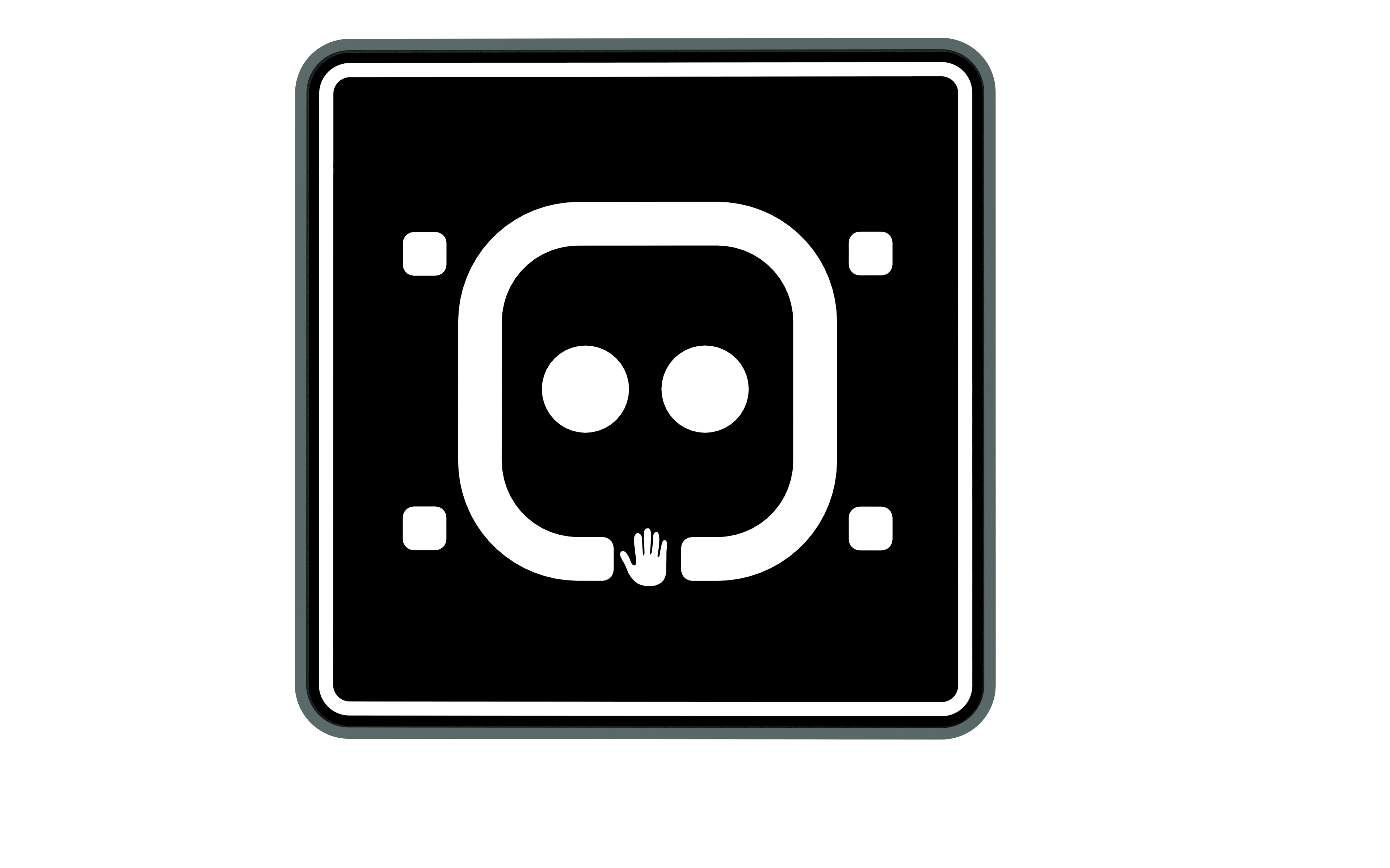

CV-T200 — Camera & Optical

ModelCV-T200 / PL-TM-P820 (Binocular)
Sensor Resolution1920 × 1080
Photosensitive Chip1/2.9"
Pixel Size2.8 × 2.8 μm
Lens6P + 1R
ADC Resolution10-bit
Max Frame Rate30 fps
Signal-to-Noise Ratio38 dB
Dynamic Range81 dB
Output FormatYUV / MJPG
FilterNarrowband 850 nm
Field of ViewD 123.6° × H 74.3° × V 102.8°
TV Distortion< 7%
Aperture / Focal LengthF2.4 / 2.69 mm

Physical & Electrical

Device Size58.5 × 15.1 × 58.5 mm
Operating Voltage5 V DC
Operating Temperature−20 °C ~ 75 °C
InterfaceUSB 2.0
Network Port FPC ConnectorSupport
WiFi FPC ConnectorSupport
Serial Port ConnectorSupport

Wireless (Optional)

WiFi FunctionWi-Fi 4 — webcam functionality and remote communication
Bluetooth FunctionBT 4.2 — Bluetooth functionality and configuration module

CV-T300 — Recognition & Performance

ModelCV-T300 (Palm Vein Access Control & Time Attendance Terminal)
Recognition MethodPalm Vein + Palm Print
Recognition Rate≥ 99.9%
Authentication Speed< 0.5 s
Palm Vein Capacity8,000
Liveness DetectionDual-camera liveness detection
Sensing Distance15 – 30 cm
ContactlessYes — fully touchless identity verification

Installation & Applications

MountingStandard 86 Box compatible
Typical ApplicationsOffice buildings, factories, schools, residential areas, construction sites, smart buildings
