CV-M Series
Palm Vein Biometric Module
Compact embedded palm vein sensor module. Designed for integration into kiosks, safes, turnstiles, and custom enclosures. Two models available to match your project needs.

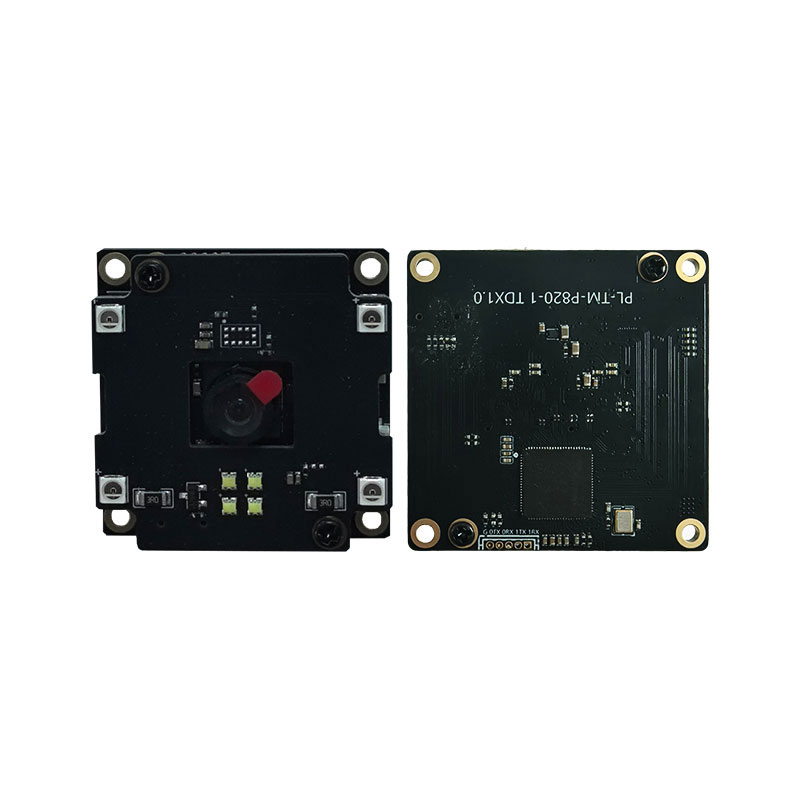

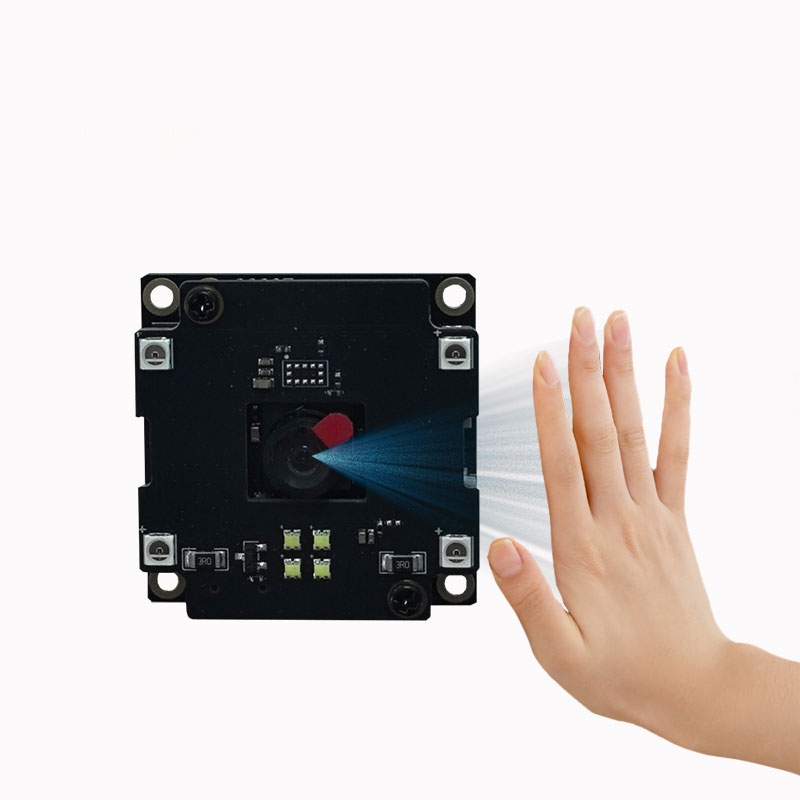

CV-M100 — Camera & Optical
| Model | CV-M100 |
| Sensor Resolution | 1920 × 1080 |
| Photosensitive Chip | 1/2.9" |
| Pixel Size | 2.8 × 2.8 μm |
| Lens | 6P + 1R |
| ADC Resolution | 10-bit |
| Max Frame Rate | 30 fps |
| Signal-to-Noise Ratio | 38 dB |
| Dynamic Range | 81 dB |
| Output Format | YUV / MJPG |
| Filter | Narrowband 850 nm |
| Field of View | D 123.6° × H 74.3° × V 102.8° |
| TV Distortion | < 7% |
| Aperture / Focal Length | F2.4 / 2.69 mm |
Physical & Electrical

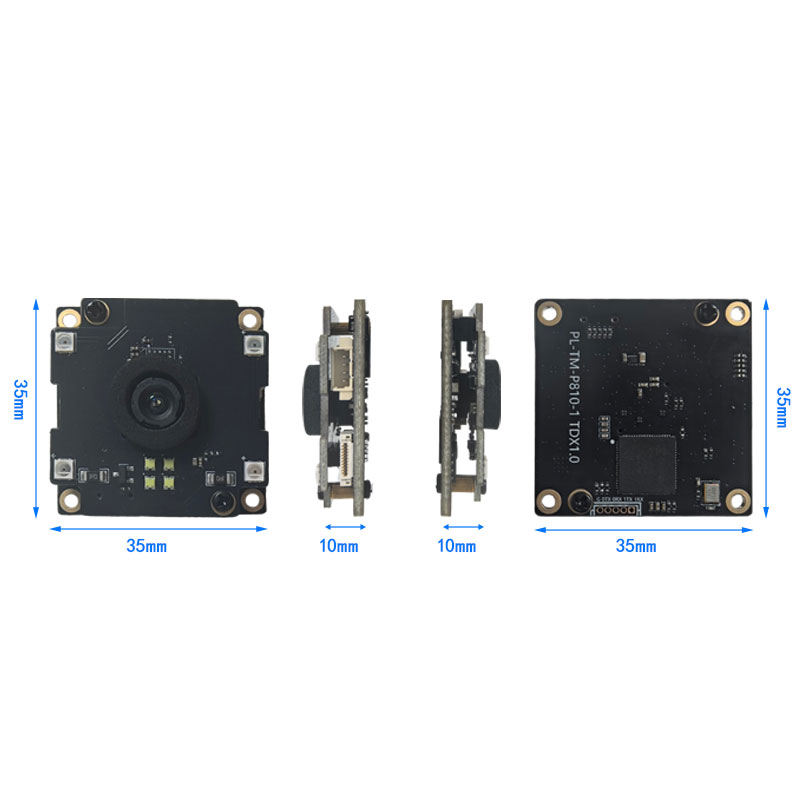

| Module Size | 35 × 35 × 10 mm |
| Operating Voltage | 5 V DC |
| Operating Temperature | −20 °C ~ 75 °C |
| Interface | USB 2.0 |
| Network (FPC) | Supported |
| WiFi (FPC) | Supported |
| Serial Port | Supported |
Wireless (Optional)
| WiFi Function | Wi-Fi 4 — webcam streaming & remote communication |
| Bluetooth Function | BT 4.2 — Bluetooth communication & device configuration |

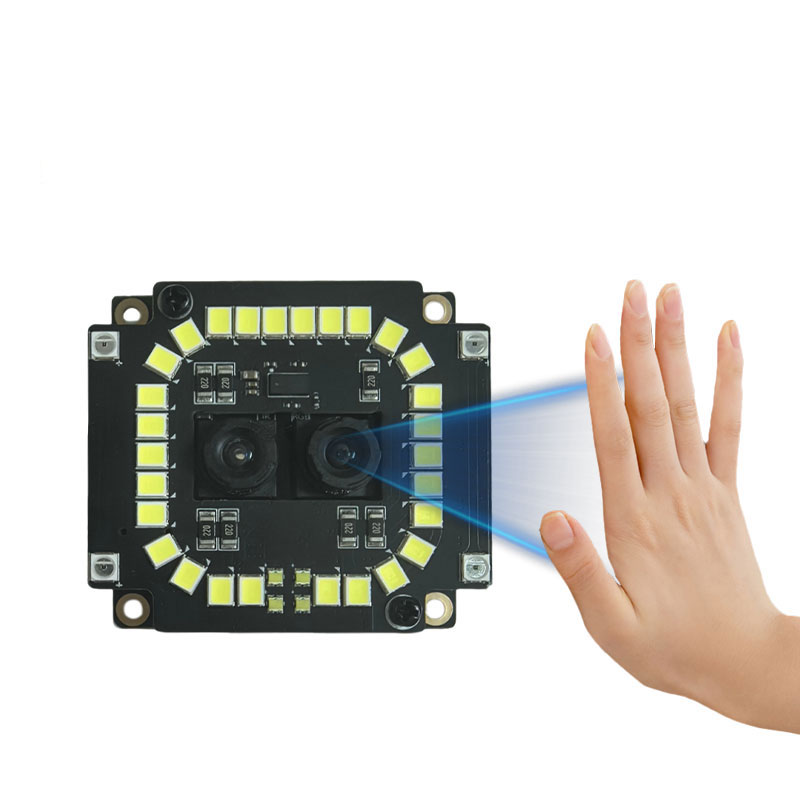

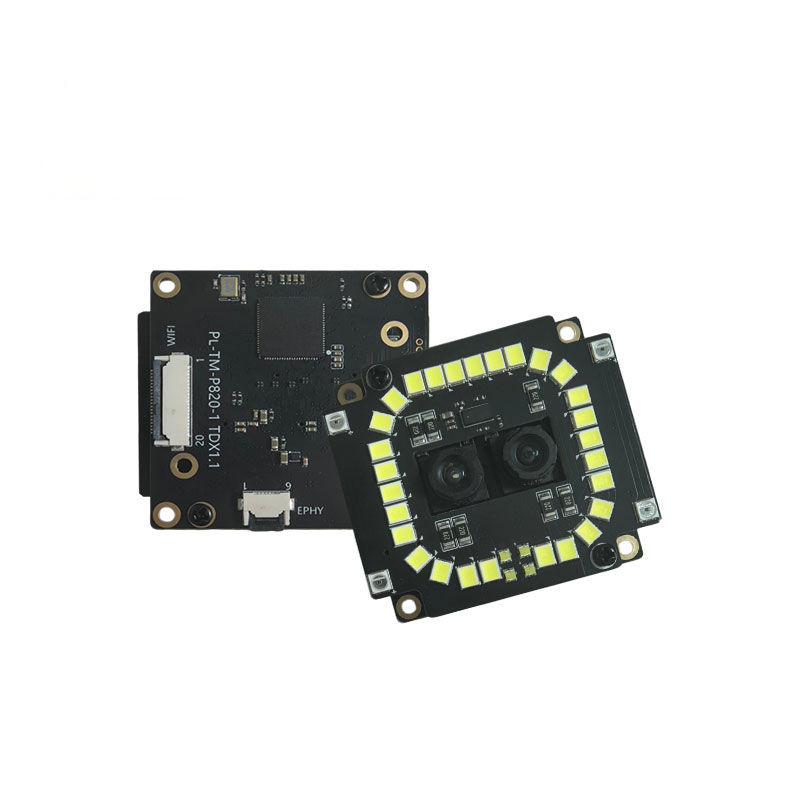

CV-M200 — Camera & Optical
| Model | CV-M200 (Dual-Lens) |
| Sensor Resolution | 1920 × 1080 |
| Photosensitive Chip | 1/2.9" |
| Pixel Size | 2.8 × 2.8 μm |
| Lens | 6P + 1R |
| ADC Resolution | 10-bit |
| Max Frame Rate | 30 fps |
| Signal-to-Noise Ratio | 38 dB |
| Dynamic Range | 81 dB |
| Output Format | YUV / MJPG |
| Filter | Narrowband 850 nm |
| Field of View | D 123.6° × H 74.3° × V 102.8° |
| TV Distortion | < 7% |
| Aperture / Focal Length | F2.4 / 2.69 mm |
Physical & Electrical

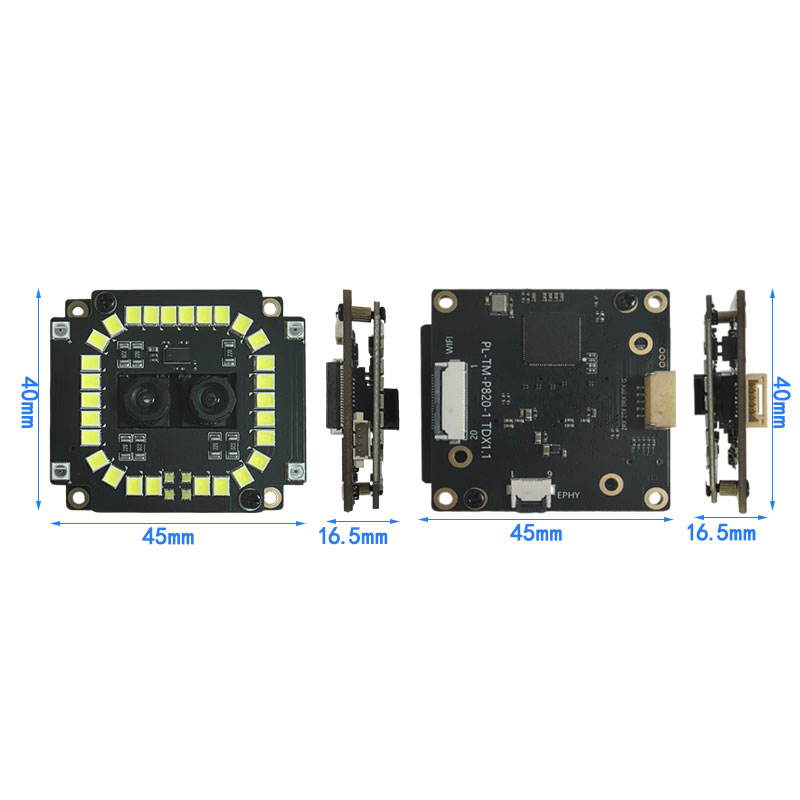

| Module Size | 45 × 40 × 16.5 mm |
| Operating Voltage | 5 V DC |
| Operating Temperature | −20 °C ~ 75 °C |
| Interface | USB 2.0 |
| Network Port (FPC) | Supported |
| WiFi Port Connector | Supported |
| Serial Port Connector | Supported |
Wireless (Optional)
| WiFi Function | Wi-Fi 4 — webcam functionality and remote communication |
| Bluetooth Function | BT 4.2 — Bluetooth configuration module |
